PRECISION MANAGEMENT
RPM Series of Main Control Panels
BUILT TO ORDER. BUILT TO LAST.
RPM PREFERRED TOUCH SCREEN
- Visual, instinctive, easy to program user interface
- Designed and built for extreme temperatures
- Integrated GPS end-of-system controls for unparalleled accuracy
- High-quality, powder-coated aluminum, corrosion resistant, main control panel meets all UL and C/UL requirements
- VRI ready
- Includes all the features of our RPM Standard and Advanced Plus panels plus:
- Records thousands of events for later download to your base PC
- Customizable step and sector programming combined with 1/10 degree accuracy for more precise application (ex. if a competitive machine is within 27” – the Reinke is at 2.7″)
- Sunlight-readable touch screen
- Windows®-based operating system
- Multilingual
- Onboard help screens
- Download updates online
- Onboard graphic applications for rain, pressure, flow, temperature, voltage and wind
- Programmable alarm inputs
- ReinControl: a continuous positioning control feature
- ReinControl maintains continuous control of the system’s position
- Arrive at a specific position in the field at a particular time
- Keeps the irrigation system on schedule toward its intended destination from the start of the irrigation cycle
RPM ADVANCED PLUS™
Growers now have a new smart irrigation tool that provides advanced control options from a customizable display. A main control panel that combines multiple controls with a simple to use touchscreen.
The Advanced Plus makes controlling pivots easier while offering enhanced options without the need to upgrade to the Preferred Panel, saving growers money.
Advanced Plus is ReinCloud-Ready®, which makes it easier for growers to have remote access control for increased efficiencies and peace of mind. It’s available with new systems and as a panel replacement or upgrade on existing RPM panels. The product comes with a five-year warranty.
- Customizable Display
- Simple to Use Touchscreen
- Enhanced Options
- ReinCloud-Ready® for Remote Access
- 5 Year Warranty
RPM CONNECT™
Designed with today’s progressive farmer in mind, this panel utilizes remote control technology to operate pivot systems. The Connect gives growers the freedom to operate irrigation systems from any smart device. This leading technology utilizes, ReinCloud®, a powerful web-based software platform where all the monitor and control features are located.
The Connect eliminates unnecessary costs associated with the panel by removing components such as the full user interface display, which is no longer needed. Connect is available with new systems and as a panel replacement or upgrade on existing RPM panels. The product comes with a five-year warranty.
- Upgrade to the latest and most powerful pivot control technology
- Eliminate unnecessary costs associated with the panel
- ReinCloud-Ready® for Remote Access
- Enhanced Options
- 5 Year Warranty
RPM ADVANCED
- Equipped with digital PAC III timer that provides increased features and accuracy
- Optional GPS end-of-system controls for unparalleled accuracy
- High-quality, powder-coated aluminum, corrosion resistant, main control panel
- Meets all UL and C/UL requirements
- Includes all the features of our RPM Standard panel plus:
- Easy to program
- 30–60 second cycle time options
- Customized speed and end gun settings in up to 10 different sections of your field
- Control two end guns or one end gun and another auxiliary output
- Delay at selected barriers
- Repeatable accuracy
RPM STANDARD
Equipped with all of the features needed for today’s grower
- High-quality, powder-coated aluminum, corrosion resistant, main control panel
- Meets all UL and C/UL requirements
- Standard features include commercial or generator power, end gun control, speed control, directional operations and start/stop
RPM BASIC
Our value priced panel built with the same high-quality components as our premium panels:
- High-quality, powder-coated steel enclosure
- Meets all UL and C/UL requirements
- Standard features include commercial or generator power, end gun control, speed control, directional operations and start/stop

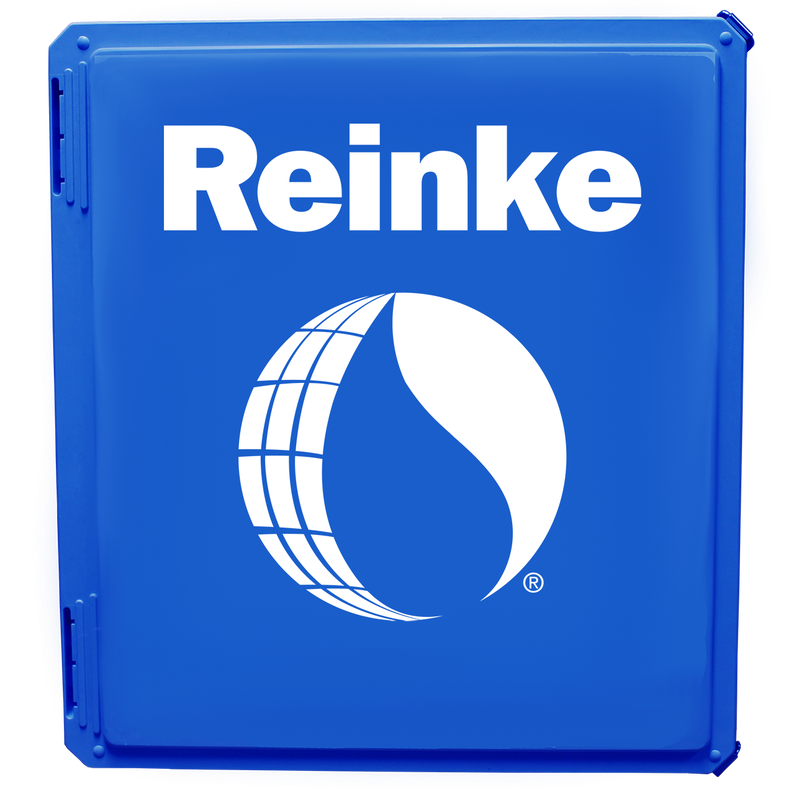

RPM ANNEX™ PIVOT CONTROLLER
Growers now have a device that wires into main control panel allowing growers to upgrade to the latest technology by “annexing” their existing panels.
The RPM Annex can provide the user interface and controls of Reinke’s RPM Preferred (AnnexPF™), RPM Advanced Plus (AnnexAP™) or RPM Connect (AnnexCT™). The RPM Annex provides further functionality by allowing growers with standard-type main control panels to utilize telemetry. And, because Annex is compatible with all center pivot brands, growers can upgrade any of their existing units to a Reinke panel.
Annex is ReinCloud-Ready®, which includes remote access for monitoring and controlling pivots, the ability to manage multiple systems from one dashboard and notifications when there’s a change in the system’s status. Annex is also available as an aftermarket component and carries a five-year warranty.
- Upgrade to the latest and most powerful pivot control technology
- Eliminate additional costs associated with purchasing a whole new panel
- Compatible with all center pivot brands
- ReinCloud-Ready® for Remote Access
- 5 Year Warranty
FEATURE COMPARISON
S O – | Standard Optional Not Available |
FEATURES | RPM PREFERRED TOUCH SCREEN | RPM ADVANCED PLUS™ | RPM CONNECT™ | RPM ADVANCED | RPM STANDARD | RPM BASIC |
Manual Pump Control | S | S | S | S | S | S |
Tower Auto Stop | S | S | S | S | S | S |
Programmable System Startup | S | – | – | – | – | – |
Two End Guns / Auxiliary Outputs | S | S | S | S | – | – |
Tower Auto Reverse | S | S | S | S | – | – |
Temperature Restart | S | S | S | – | – | – |
Pressure Restart | S | S | S | – | – | – |
Programmable Park | S | S | S | S | – | – |
Position Auto Reverse | S | S | S | S | – | – |
Position Programmable | S | S | S | S | – | – |
Multiple Speed Settings | S | S | S | S | O | – |
Lightning Arrestor | S | S | S | S | O | O |
Power Auto Restart | S | S | S | S | O | O |
End Gun Control | S | O | O | O | O | O |
Pivot Auto Stop Control | S | O | O | O | O | O |
Pivot Auto Reverse Control | S | O | O | O | O | O |
Manual Injector Pump Switch | S | O | O | O | O | – |
Low Voltage Safety | S | O | O | O | O | – |
Configurable Alarm Inputs | S | – | – | – | – | – |
Programmable Auxiliary Inputs | S | S | S | – | – | – |
Date/Time Programmable | S | – | – | – | – | – |
Programmable Well Control | S | S | S | – | – | – |
Logs / Record Keeping | S | S | S | – | – | – |
Flow Meter | O | O | O | – | – | – |
Integrated Wireless Relay Controls | S | – | – | – | – | – |
Programmable Chemigation Pump Control | S | S | S | – | – | – |
Programmable A/C Inputs | S | – | – | – | – | – |
Graphical Display of Data | S | – | – | – | – | – |
Start Sequencing | S | – | – | – | – | – |
Water Application Scheduling | S | – | – | – | – | – |
LCD Touchscreen | S | S | – | – | – | – |
High/Low Voltage Setting | S | – | – | – | – | – |
Integrated Help Screens | S | – | – | – | – | – |
Start/Stop by Flow | S | – | – | – | – | – |
ReinControl™ | S | – | – | – | – | – |
Manual Generator Control | O | O | O | O | O | O |
Ground Fault Protection | O | O | O | O | O | O |
Pressure Switch | O | O | O | O | O | O |
Remote Panel Placement | O | O | O | O | O | O |
Single Phase | O | O | O | O | O | O |
Injector Receptable Kit | O | O | O | O | O | – |
UL Approval | O | O | O | O | O | – |
Frost Switch | O | O | O | O | O | – |
GPS Positioning | O | O | O | O | – | – |
Temperature Probe | O | O | O | O | – | – |
Rain Sensor | O | – | – | – | – | – |
Wind Speed & Direction Sensor | O | – | – | – | – | – |
Integrated Telemetry | O | O | S | – | – | – |
